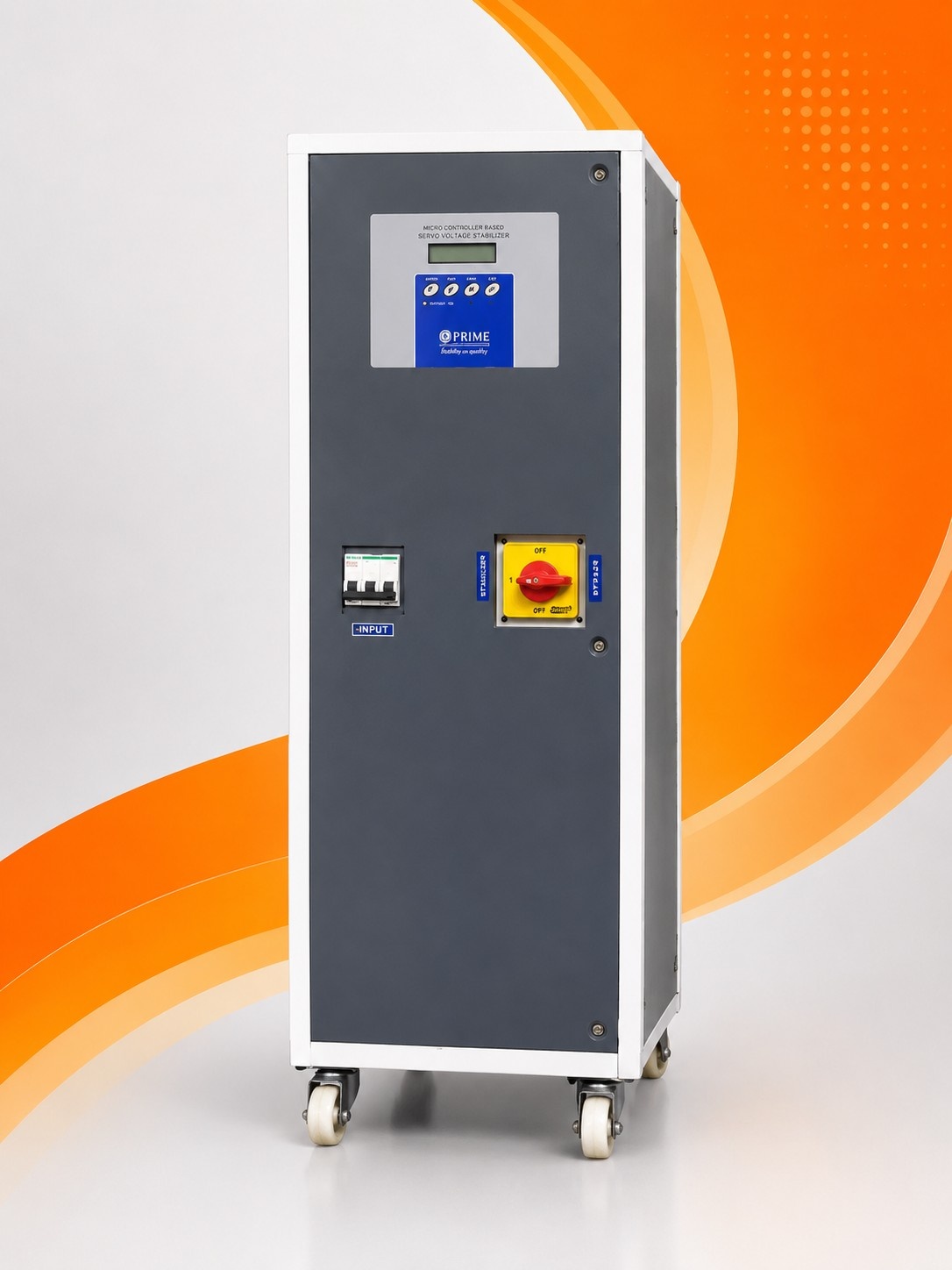

Three Phase Servo Voltage Stabilizer

This Three Phase Servo Voltage Stabilizer is designed to provide accurate voltage stabilization and reliable power protection for industrial and commercial applications. Built with advanced microcontroller-based digital control technology, it maintains a stable output voltage even during heavy voltage fluctuations, ensuring uninterrupted performance for sensitive electrical equipment.

The stabilizer features a robust and compact cabinet design with high-quality components for long-lasting durability and efficient operation. Equipped with a digital LCD display and precision control system, it offers real-time monitoring and smooth voltage correction for improved equipment safety and efficiency.

Engineered for demanding environments, this stabilizer protects connected systems against under-voltage, over-voltage, overload, short circuits, and phase imbalance. Its high efficiency, fast response time, and low maintenance operation make it suitable for CNC machinery, printing machines, medical equipment, automation systems, manufacturing units, IT infrastructure, laboratories, and commercial facilities.

The movable industrial design ensures easy installation and handling, while customizable voltage ranges and capacity options make it adaptable for various power requirements. With reliable performance and superior protection features, this Servo Voltage Stabilizer delivers stable and efficient power for critical operations.

Categories: , Tags: , , Product ID: 1021

Description

TECHNICAL PARAMETERS SINGLE PHASE THREE PHASE CUSTOMIZED
Rating : 2 kva to 2000 kva 2 KVA to 60 KVA 10 KVA to 2000 KVA
Input Voltage Range 195 V – 280 V AC 340V – 480 V AC As per client requirement
170 V – 280 V AC 300V – 480 V AC
155 V – 280 V AC 295V – 480 V AC
140 V – 280 V AC 265V – 480 V AC
110 V – 280 V AC 245V – 480 V AC
Output Voltage 230 V 400V Yes
Output Adjustable 220 – 240 V AC) 380 – 415 V AC Yes
Output Regulations ± 2% ± 2% Yes
Type Balanced, Unbalanced Type Yes
Insulation Class A / Class B Yes
Vector Group Star / Star , 3 Phase + Neutral Yes
Frequency Hz 47 Hz-53 Hz Yes
Nature of Cooling Air Cooled Servo Stabilizer Yes
Oil Cooled Servo Stabilizer Optional
Construction Variable Auto Transformer + Buck Boost Transformer + Servo Motor Yes
Effect of Power Factor Nil Yes
Wave Form Distortion Nil Yes
Control Circuit Micro Controller Based Digital Circuit and Control Yes
Response Time 10 ms or As per IS 9815 Standards Yes
Voltage Correction Rate for Air Cooled Servo Stabilizer 15-20 Volts / Sec Yes
Voltage Correction Rate for Oil Cooled Servo Stabilizer 8 -12 Volts / Sec Yes
Metering LCD Display Yes
General Efficiency of our Servo Stabilizer Better than 95 % or As per IS 9815 Standards Yes
Ambient Temperature 0 – 55 Degree C Yes
Protection Under / Over Voltage Cut off Protection Yes
Single Phase Prevention Yes
Optional Protection Overload / Short Circuit Protection Yes
Manual Bypass – Changeover Yes
Input MCB/MCCB Yes
Installation Type Indoor Yes
Outdoor Optional

Additional information

Color

White, Yellow, Orange

Size

S, M, L
